Performance Flow Chart

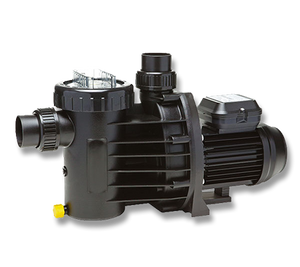

Speck BADU®Magic 6 - External Self Priming Centrifugal Water Pump: 0.25Kw - 9000l/hr@3m Head

Speck
SKU:
BaduMAG-025
R4,050.00
(No reviews yet)
Weight:
6.00 KGS
Current Stock:
Adding to cart… The item has been added
Description

The German designed Speck BADU®Magic is a range of power saving pumps, especially designed for aquaponics systems, koi ponds, commercial hydroponic systems, splash pools and water features. The pump can be installed to a maximum of 2m above or 3m below water level. The pump must be installed on a flat area, above potential flooding.

The BADU®Magic 6 can pump 9000 l/hr at a 3m Head, and 2000l/hr at 11 m Head.



FEATURES

  • Plastic material combination of Polypropylene and 20% Tetrafluoro.
  • Self-priming
  • German design mechanical seal using carbon to ceramic sealing surfaces.
  • Total electric separation.
  • High efficiency.
  • Stainless Steel shaft.
  • Available in 2 sizes.
  • Temperature stability up to 60°C.
  • Plastic components are 100% recyclable.
  • Fully factory tested.
  • New 2 part easy screw on/off lid.



Product Info



  • Voltage: 230 V ac
  • Power Output: 0.25kW
  • Rated Current (A): 2.1
  • Inlet /Outlet Connections : 50/50mm
  • Motor speed approx. (rpm) 2840
  • Max. Water temperature (°C) 60
  • Max. Casing pressure (bar) 2.5





WARRENTY: 36 month ex-factory warranty (manufacturing defects only) under normal operating conditions from date of purchase
